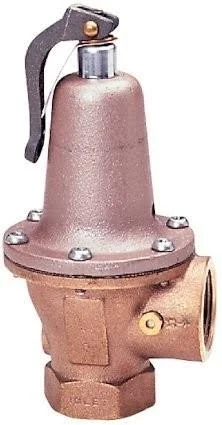

Watts 0382821 1-Inch x 1-1/4-Inch Boiler Pressure Relief Valve (75 PSI)

Description

Watts ASME Water Pressure Relief Valves Series 740-75, 1 x 1-1/4 inch (0382821)Series 740 Boiler Pressure Relief Valves are used in hot water space heating boiler applications to protect against excessive pressure on all types of hot water space heating boiler equipment. It consists of a iron body construction with expanded outlet drain connections for hot water space heating boilers, non-metallic disc-to-metal seating, stainless steel spring, and test lever. Series 740 offers large discharge capacity, resists corrosive water conditions, resists sticking and freezing, and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief and shall not be used as an operating control. Pressure Range: 30 to 75psi (2 to 5 bar) with corresponding high ratings from 925,000 to 10,700,000 BTU/hr.Watts ASME Water Pressure Relief Valves Series 740-75, 1 x 1-1/4 inch (0382821) Features: 3/4 to 2 in. (20 to 50mm) Seat located above drain; water can't be trapped and sediment can't foul seat. Non-mechanical seat-to-disc alignment will not stick or freeze. Water seal of high temperature resisting material isolates spring working parts from water during relief. Non-mechanical seat-to-disc alignment will not stick or freeze. Pressure Range: 30 to 75psi (2 to 5 bar) with corresponding high ratings from 925,000 to 10,700,000 BTU/hr.Watts ASME Water Pressure Relief Valves Series 740-75, 1 x 1-1/4 inch (0382821) Features: 3/4 to 2 in.

Key Features

• (20 to 50mm) Seat located above drain; water can't be trapped and sediment can't foul seat.
• Series 740 offers large discharge capacity, resists corrosive water conditions, resists sticking and freezing, and prevents water and sediment from being trapped in the seat.
• It is designed for emergency safety relief and shall not be used as an operating control.
• Pressure Range: 30 to 75psi (2 to 5 bar) with corresponding high ratings from 925,000 to 10,700,000 BTU/hr.Watts ASME Water Pressure Relief Valves Series 740-75, 1 x 1-1/4 inch (0382821) Features: 3/4 to 2 in.
• It consists of a iron body construction with expanded outlet drain connections for hot water space heating boilers, non-metallic disc-to-metal seating, stainless steel spring, and test lever.
• Watts ASME Water Pressure Relief Valves Series 740-75, 1 x 1-1/4 inch (0382821)Series 740 Boiler Pressure Relief Valves are used in hot water space heating boiler applications to protect against excessive pressure on all types of hot water.
