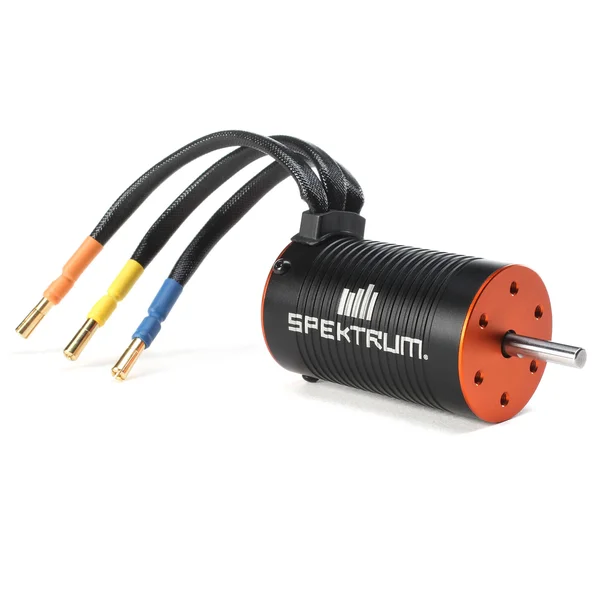

Spektrum Firma 3150KV Brushless Motor SPMXSM1000

Description

Preinstalled with 4mm gold plated bullet connectors for easy installation. Perfectly matched for the Firma 130 Smart ESC. Key Features upgrade for brushed 540- and 550-size brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 5mm bore) 4-pole sintered rotors Includes 4mm gold plated bullet connectors Precision ball bearings and hardened steel 5mm shaft Overview Great choice for 1/10 Scale 4WD models. Low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, alloy steel 5mm output shaft, and high-precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation. Perfectly matched for the Firma 130 Smart ESC. Spektrum Firma 3660-3150kv Sensorless 1/10 Brushless Motor with 4mm Gold Plated Bullet Connectors Specifications Bushing Or Bearing Bearing Cells 2-3S LiPo, 4-9 cell NiMH Connector Type 4mm Bullet Efficiency 90% Input Voltage 6-13.2V Maximum Continuous Current 100A Motor Design Inrunner Motor Type Brushless Number of Poles 4 Outer Diameter 1.4 in (36mm) Output 1300W Overall Length 2.4" (60mm) Product Weight 8.7oz (247g) Recommended Speed Control Spektrum Firma 130 Smart ESC RPM/Volt (Kv) 3150Kv. Needed to Complete Electronic Speed Control such as the Firma 130 Smart ESC What's in the box?

Key Features

• Perfectly matched for the Firma 130 Smart ESC.
• Preinstalled with 4mm gold plated bullet connectors for easy installation.
• Key Features upgrade for brushed 540- and 550-size brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 5mm bore) 4-pole sintered rotors Includes 4mm gold plated bullet connectors Precision ball.
• Low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, alloy steel 5mm output shaft, and high-precision bearings for high durability and smooth rotation.
• Spektrum Firma 3660-3150kv Sensorless 1/10 Brushless Motor with 4mm Gold Plated Bullet Connectors Specifications Bushing Or Bearing Bearing Cells 2-3S LiPo, 4-9 cell NiMH Connector Type 4mm Bullet Efficiency 90% Input Voltage 6-13.2V.
