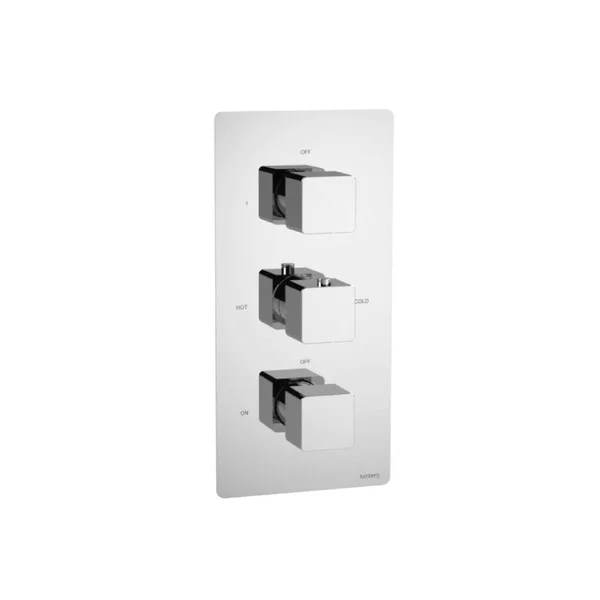

Isenberg 196.4501PN 3/4x22 Thermostatic Valve 3 Output with Volume Control and Trim Shared Port Operation Polished Nickel

Description

Without pressing it, the user will not be able to rotate the handle to the full HOT position as an anti-scald prevention mechanism. To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. In case, a tile is thicker or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4501 valve is 1.40 inches). The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required during installation) for it to function properly. Trims - The trim comprises of well finished trim plate and handle knobs. As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77 and 3.44 . Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles. The valve has a flow rate of 13.0 GPM @ 60 PSI. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. The trim plate is used to cover the wall and has markings for ON/OFF, 1/2/OFF and HOT/COLD for temperature control handle and volume control handles. Any *4501 series trim can be used with this valve.

Key Features

• In case, a tile is thicker or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4501 valve is 1.40 inches).
• Trims - The trim comprises of well finished trim plate and handle knobs.
• The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required during installation) for it to function properly.
• As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77 and 3.44.
• Cut Out Dimensions - The cut out in wall should be 8.81 X 4.44 inches which is properly covered by the trim plate.
• Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value.
