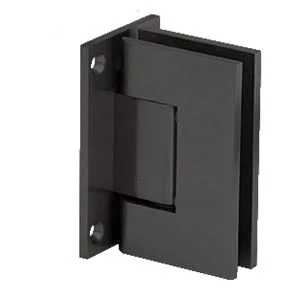

CRL GEN037MBL Matte Black Geneva 037 Series Wall Mount Full Back Plate Standard Hinge Shower Door Hardware

Description

The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). Contact Technical Sales Shower Door Division. Construction: Solid Brass Hinge Swings: 90 degree in and 90 degree Out Closing Type: Self-Centering when within 15 degree of Closed Position Cut-Out Required Includes: Gaskets Screws and Glass Fabrication Dimensions. If hinges are to be used for other than their intended purpose approval must be obtained from the CRL Shower Door Technical Sales Department. (36 kg) with a maximum door width of 28" (711 mm). GENP1N) are available to accommodate "off-angle" installations. Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. The Pin can be rotated (not flipped upside down) to activate the other side. Offset Models come with the Pin pre-set to 85 Degrees (5 degree tighter closure into shower interior). Geneva Hinges are self-centering and contain a Reversible 5 Degree Pivot Pin. In addition Custom Pivot Pins are available to accommodate "off-angle" installations. Custom Pivot Pin: Custom Pivot Pins (Cat. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use.

Key Features

• SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position or 5 degree Pre-Set Model for tighter closure into.
• The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass.
• Made of solid brass with all moving parts (pins and springs) in stainless steel.
• Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs.
• Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs.
• GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
