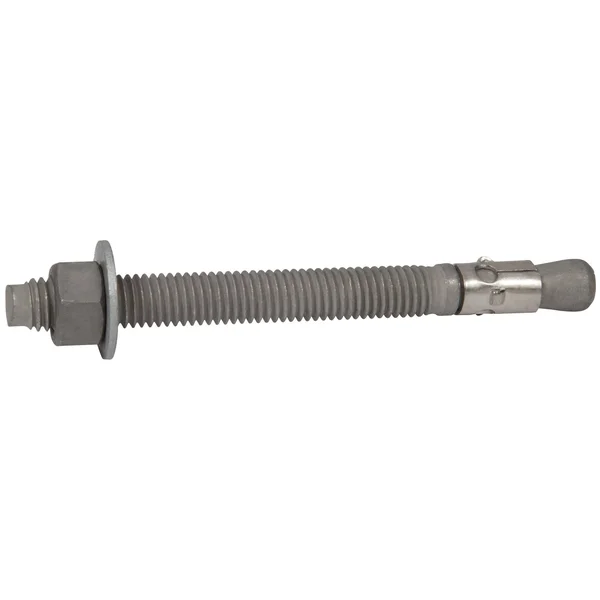

CONFAST 5/8x22 x 6x22 Hot-Dipped Galvanized Wedge Anchor (Box of 20)

Description

Diameter of anchor the diameter of the anchor is 5/8in. The 5/8in diameter anchor requires the hole in the fixture to be 7/8in. Maximum fixture thickness the maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 2-5/8in. Applications the anchor is made from carbon steel, and is hot-dipped galvanized. Hole diameter/bit diameter the anchor requires a 5/8in hole to be drilled in the base material concrete only. The hole should be drilled with carbide tipped bit that meets ansi standards and used in a hammer drill. Edge distance it is very important not to install the anchor any closer than 3-1/8in from an unsupported edge of the concrete. Applications the anchor is made from carbon steel, and is hot-dipped galvanized. Hole diameter/bit diameter the anchor requires a 5/8in hole to be drilled in the base material concrete only. Therefore, the anchor must be installed so that a minimum of 2-3/4in of the anchor is embedded into the concrete. Spacing between anchors each anchor must be spaced a minimum distance of 6-1/4in from each other when measured center to center. This anchor is designed for use in concrete only, and should never be used in block or brick base material. Environment the anchor is designed for use in a damp environment. Minimum embedment the minimum anchor embedment into the concrete is 2-3/4in. Length anchor the length of the anchor is 6in thread length the length of the threads on the anchor is 4in in length.

Key Features

• Hole diameter/bit diameter the anchor requires a 5/8in hole to be drilled in the base material concrete only.
• Length anchor the length of the anchor is 6in thread length the length of the threads on the anchor is 4in in length.
• Minimum embedment the minimum anchor embedment into the concrete is 2-3/4in.
• Therefore, the anchor must be installed so that a minimum of 2-3/4in of the anchor is embedded into the concrete.
• Applications the anchor is made from carbon steel, and is hot-dipped galvanized.
• Diameter of anchor the diameter of the anchor is 5/8in.
