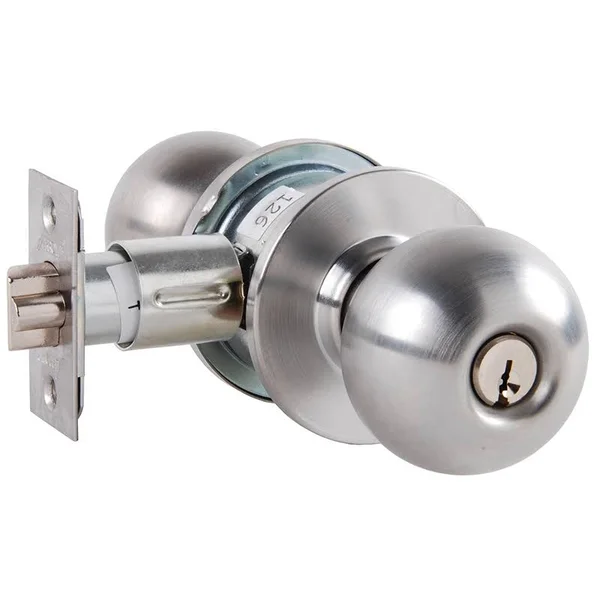

Arrow MK12TA 26D Cylindrical Lock

Description

The Arrow MK Series has a clear design and is a simple solution to accessibility requirements. Lock Chassis – Cold rolled steel with zinc dichromate finish for corrosion resistance. Backset – 2-3/8" (60.32mm) standard. 2-3/4" (69.85mm), 3-3/4" (95.25mm) and 5" (127mm) available. 7/8" (22.225mm) bore in edge of door is required. Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in. Arrow MK Series offer the designer, architect and contractor simple solutions to accessibility requirements. The MK Series is available in several finishes and functions that make them ideal for commercial applications where heavy duty grade one hardware may not be necessary. Handing– Reversible. Supplied with two 5 pin brass keys for stock. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Latch housing is steel, with zinc dichromate finish for corrosion resistance. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary. Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm). Latch Front – Brass, bronze or stainless steel. Available in Schlage CS keyway and other competitive keyways. Requires standard 2-1/8" (53.97mm) bore through door.

Key Features

• Requires standard 2-1/8" (53.97mm) bore through door.
• Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in.
• Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm).
• 2-3/4" (69.85mm), 3-3/4" (95.25mm) and 5" (127mm) available.
• Door Thickness – 1-3/8" (34.92mm) to 1-3/4" (44.45mm).
• Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm).
