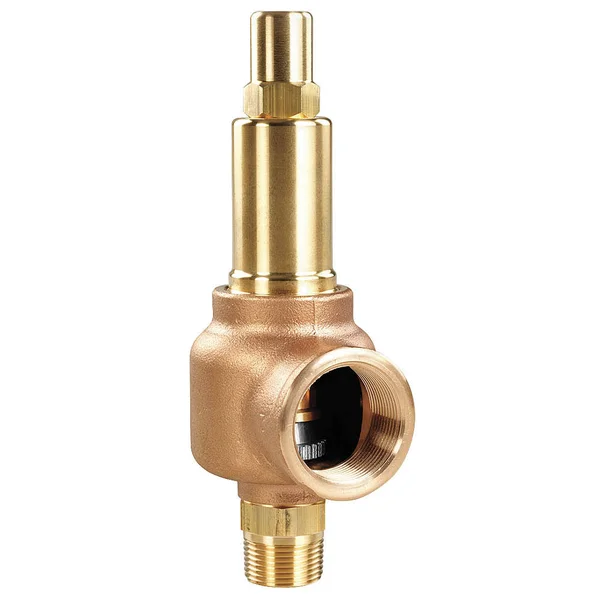

Aquatrol - 740EF-M2L-15 - Brass/Bronze Safety Relief Valve - MNPT Inlet Type, FNPT Outlet Type

Description

This listing is for each. Technical Specification Item Safety Relief Valve Body Material Brass/Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 1 in Outlet Size 1 1/4 in Factory Set Pressure 15 psi Disc Material Stainless Steel Overall Height 8 1/8 in Application. Range -320 Degrees to 406 Degrees F Test Lever No Standards ASME Section VIII / CRN This item is restricted for conveying or dispensing water for potable use (human consumption). Factory preset and sealed to prevent tampering. Technical Specification Item Safety Relief Valve Body Material Brass/Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 1 in Outlet Size 1 1/4 in Factory Set Pressure 15 psi Disc Material Stainless Steel Overall Height 8 1/8 in Application Liquids Overall. High-capacity, multipurpose valve features a dual lapped disc for improved seating tightness. Factory preset and sealed to prevent tampering. This listing is for each. Technical Specification Item Safety Relief Valve Body Material Brass/Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 1 in Outlet Size 1 1/4 in Factory Set Pressure 15 psi Disc Material Stainless Steel Overall Height 8 1/8 in Application Liquids Overall Length 8 1/8 in Seat Material Brass/Stainless Steel Spring Material Stainless Steel Temp. Range -320 Degrees to 406 Degrees F Test Lever No Standards ASME Section VIII / CRN This item is restricted for conveying or dispensing water for potable use (human consumption). Not adjustable.

Key Features

• Factory preset and sealed to prevent tampering.
• High-capacity, multipurpose valve features a dual lapped disc for improved seating tightness.
• This listing is for each.
• Technical Specification Item Safety Relief Valve Body Material Brass/Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 1 in Outlet Size 1 1/4 in Factory Set Pressure 15 psi Disc Material Stainless Steel Overall Height 8 1/8 in Application.
• Range -320 Degrees to 406 Degrees F Test Lever No Standards ASME Section VIII / CRN This item is restricted for conveying or dispensing water for potable use (human consumption).
