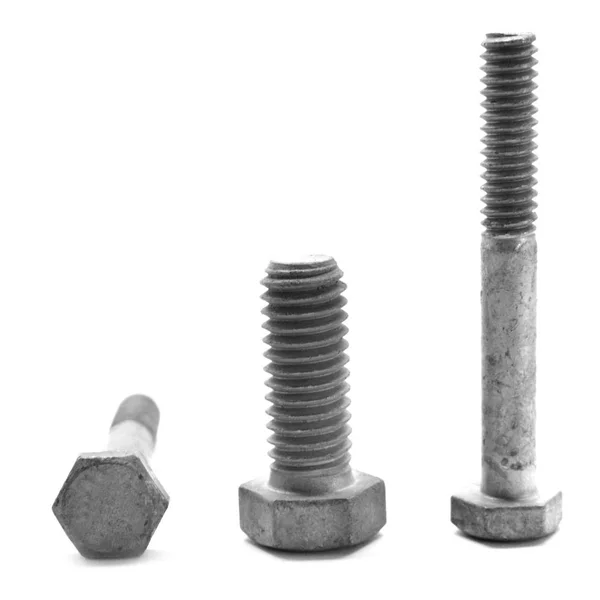

7/8x22-9 x 8 1/2x22 (PT) Coarse Thread A307 Grade A Hex Bolt Low Carbon Steel Hot Dip Galvanized

Description

Hex bolts may have an undersize body in longer lengths. Hex bolts have a flat end and lack the washer face under the head. PRODUCT SPECIFICATIONS Part #: 0000-132925 Fastener Type: Hex Bolt Size Description: 7/8"-9 x 8 1/2" (PT) Diameter/Nominal Size: 7/8" Length: 8 1/2" Wrench Size/Across Flats: 1 5/16" (1.285-1.312") Width Across Corners: 1.465-1.516" Head Height: 35/64" (0.531-0.563") Thread Pitch: 9 Thread Pitch. Buy as few as 5 pcs. Discounts on larger quantities. Part #: 0000-132925. Buy as few as 5 pcs. Discounts on larger quantities. PRODUCT SPECIFICATIONS Part #: 0000-132925 Fastener Type: Hex Bolt Size Description: 7/8"-9 x 8 1/2" (PT) Diameter/Nominal Size: 7/8" Length: 8 1/2" Wrench Size/Across Flats: 1 5/16" (1.285-1.312") Width Across Corners: 1.465-1.516" Head Height: 35/64" (0.531-0.563") Thread Pitch: 9 Thread Pitch Type: Coarse Thread Direction: Right Thread Coverage: Partial System of Measurement: Inch Grade: A (2) Material: Low Carbon Steel Finish: Hot Dip Galvanized Head Type: Hex Drive Type: External Hex. Hexagonal heads and machine threads used with a nut or in a tapped hole; also known as or machine bolts. Hex bolts are similar to hex cap screws. A hex cap screw has tighter tolerances on the body dimensions and features a chamfered end and a washer face under the bolt head. A hex cap screw is often called a finished hex bolt. Hex bolts have a flat end and lack the washer face under the head. Hex bolts may have an undersize body in longer lengths.

Key Features

• Hexagonal heads and machine threads used with a nut or in a tapped hole; also known as or machine bolts.
• Hex bolts have a flat end and lack the washer face under the head.
• PRODUCT SPECIFICATIONS Part #: 0000-132925 Fastener Type: Hex Bolt Size Description: 7/8"-9 x 8 1/2" (PT) Diameter/Nominal Size: 7/8" Length: 8 1/2" Wrench Size/Across Flats: 1 5/16" (1.285-1.312") Width Across Corners: 1.465-1.516" Head.
• A hex cap screw has tighter tolerances on the body dimensions and features a chamfered end and a washer face under the bolt head.
• A hex cap screw is often called a finished hex bolt.
• Hex bolts may have an undersize body in longer lengths.
