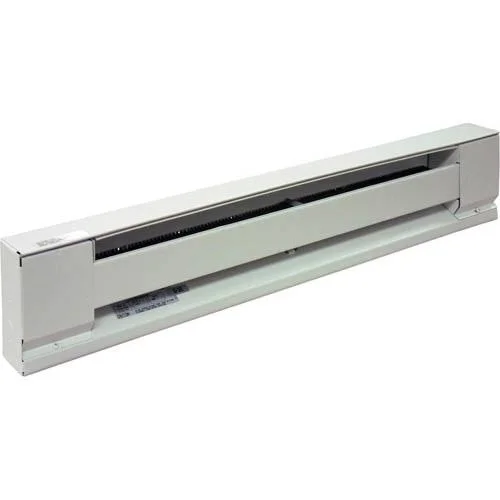

1000W 120V 48\\

Description

It finds application in commercial/residential areas. Heater can be mounted to the wall by using the key hole knockouts provided at every 4 inches at the back of the heater. Dimension: 48 Inch Width x 2-1/2 Inch Depth x 6 Inch Height Optional enclosed conduit wireway available Optional In-Built thermostats field installed in the junction box TPI/Raywall 2900HA Series 1-Phase Electric baseboard high altitude convection heater in ivory color is rated at 120 Volts/1000 Watts and 8.3 Amps. Heater provides an output of 3413 BTU and has aluminum heating element for quick heat transfer. It has durable painted 22-gauge steel front with corrosion-resistant 20-gauge junction boxes on each end. The junction boxes contain quick connect cable clamps and 6-Inch ground lead wires for making connections easily. Entire length of the heated area is extended with the over-temperature thermal limit and heater has a full length wireway provided along the back of the heater for concealed connections. It measures 48 Inch x 2-1/2 Inch x 6 Inch. Heater can be mounted to the wall by using the key hole knockouts provided at every 4 inches at the back of the heater. Junction box has thermostats installed for adjustment to a desired level. It finds application in commercial/residential areas. Heater is cETLus listed. Junction box has thermostats installed for adjustment to a desired level. It has durable painted 22-gauge steel front with corrosion-resistant 20-gauge junction boxes on each end.

Key Features

• It has durable painted 22-gauge steel front with corrosion-resistant 20-gauge junction boxes on each end.
• The junction boxes contain quick connect cable clamps and 6-Inch ground lead wires for making connections easily.
• Dimension: 48 Inch Width x 2-1/2 Inch Depth x 6 Inch Height Optional enclosed conduit wireway available Optional In-Built thermostats field installed in the junction box TPI/Raywall 2900HA Series 1-Phase Electric baseboard high altitude.
• Heater can be mounted to the wall by using the key hole knockouts provided at every 4 inches at the back of the heater.
• It measures 48 Inch x 2-1/2 Inch x 6 Inch.
• Heater provides an output of 3413 BTU and has aluminum heating element for quick heat transfer.
